The Ultimate Guide to Fan Predictive Maintenance in 2025: From Theory to ROI

Aug 31, 2025

fan predictive maintenance

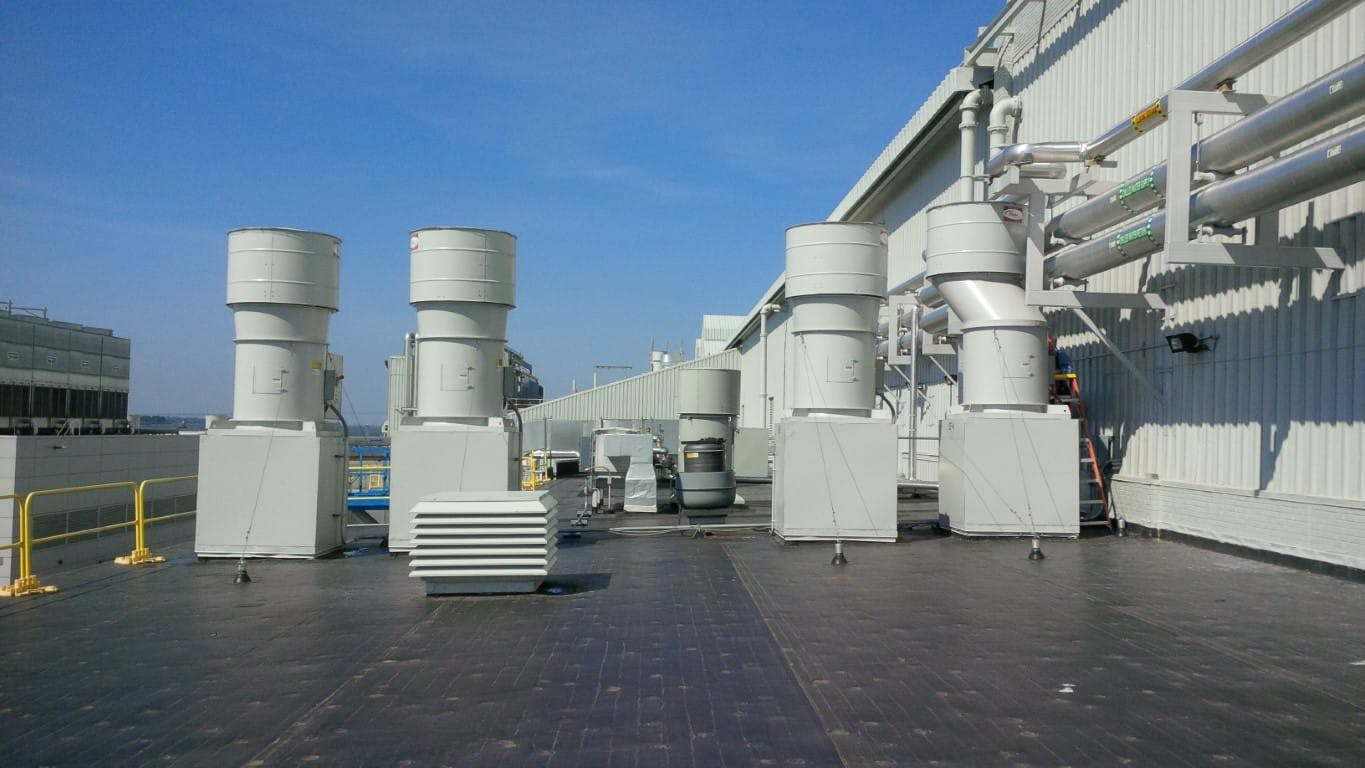

A critical fan fails. It’s not just a piece of equipment that stops; it’s a cascade of consequences. In a manufacturing plant, it’s the paint booth exhaust fan that halts the entire production line. In a data center, it’s the Computer Room Air Handler (CRAH) fan that fails, putting millions of dollars of servers at risk of overheating. In a commercial high-rise, it’s the main HVAC air handler that goes down during a heatwave, leading to tenant complaints and potential lease violations.

The cost of unplanned downtime is staggering, but it's a reality that maintenance and facility managers face daily. For decades, the approach to maintaining critical rotating equipment like industrial fans has been a costly gamble, oscillating between running equipment to failure or replacing parts on a fixed schedule, often prematurely.

But in 2025, there is a profoundly better way.

Fan predictive maintenance (PdM) represents a strategic evolution from reactive firefighting and calendar-based guesswork to a data-driven, proactive state of control. It’s about using advanced technology to listen to your equipment, understand its health in real-time, and predict failures with remarkable accuracy—allowing you to intervene at the perfect moment.

This comprehensive guide will walk you through everything you need to know to build, implement, and justify a world-class fan predictive maintenance program. We’ll move beyond the buzzwords and dive into the practical technologies, step-by-step processes, and real-world scenarios that turn predictive insights into tangible results.


Why Traditional Fan Maintenance Falls Short

Before embracing the future, it’s essential to understand the limitations of the past. Traditional maintenance strategies, while once the only options, carry inherent risks and inefficiencies that modern operations can no longer afford.

The Pitfalls of Reactive Maintenance (Run-to-Failure)

The "if it ain't broke, don't fix it" philosophy is the most primitive and costly maintenance strategy. For non-critical assets, it can sometimes be a calculated risk. But for industrial fans integral to production, safety, or environmental control, it’s a recipe for disaster.

  • Catastrophic Downtime: Failures are, by nature, unpredictable. They happen at the worst possible times—during a peak production run or in the middle of the night—leading to maximum disruption and lost revenue.
  • Secondary Damage: A simple bearing failure can quickly escalate. When a bearing seizes, the rotational force can destroy the shaft, damage the fan housing, and even cause the motor to burn out. A $500 bearing replacement becomes a $15,000 catastrophic failure.
  • Safety Hazards: A fan that fails catastrophically can throw blades or create other projectiles, posing a significant risk to personnel. Sudden shutdowns of ventilation fans can also lead to hazardous air quality conditions.
  • Expensive Repairs: Emergency repairs always cost more. You’ll pay a premium for expedited parts shipping, overtime for technicians, and potentially for outside contractors, all while your operation is bleeding money from downtime.

The Limitations of Preventive Maintenance (Time-Based)

Preventive maintenance (PM) was a major step forward from reactive maintenance. By scheduling maintenance tasks—like bearing replacements or belt changes—at regular intervals, facilities could reduce the frequency of unexpected failures. However, this calendar-based approach is fundamentally flawed.

It operates on averages, not actual equipment condition. It assumes that every fan bearing in a similar application will fail after the same number of operating hours. The reality is far different, as illustrated by the classic "bathtub curve" of failure probability.

  • Wasted Resources: Studies have consistently shown that a significant portion of time-based component replacements are unnecessary. You may be replacing a perfectly healthy bearing with years of useful life left, wasting money on parts and labor.
  • Induced Failures: The act of maintenance itself can introduce new problems. A new bearing can be installed incorrectly, a seal can be damaged, or fasteners can be improperly torqued, leading to a premature failure—a failure that wouldn't have happened if the healthy component had been left alone.
  • Inability to Prevent All Failures: A time-based PM scheduled for every 12 months provides no protection if a component develops a fault in month two and fails in month six. You are still exposed to unplanned downtime between scheduled PMs.

Predictive maintenance addresses the core weaknesses of both reactive and preventive strategies by focusing on one simple, powerful idea: perform maintenance based on the actual, real-time condition of the asset.


The Core Principles of Predictive Maintenance for Fans

Predictive maintenance isn't just about technology; it's a strategic mindset shift. It leverages condition-monitoring data to move maintenance from a cost center defined by emergencies and schedules to a strategic function that drives reliability and profitability.

At the heart of this strategy is the P-F Curve. This concept is fundamental to understanding the value of PdM.

(Conceptual image of a P-F Curve)

The P-F Curve, detailed extensively by reliability experts at sources like Reliabilityweb, illustrates the journey of an asset from a healthy state to total failure.

  • Point P (Potential Failure): This is the moment a potential failure becomes detectable. It might be a microscopic crack in a bearing race or a slight change in the motor's current draw. The fan is still operating normally, but the seeds of failure have been sown.
  • Point F (Functional Failure): This is the point where the fan can no longer perform its intended function. It has seized, stopped spinning, or is vibrating so violently it must be shut down.
  • The P-F Interval: This is the window of time between the detection of a potential failure (P) and the actual functional failure (F).

The entire goal of predictive maintenance is to identify Point P and then manage the asset within the P-F interval. By detecting the earliest signs of wear, you gain the most valuable resource in maintenance: time. Time to plan the repair, order the parts, schedule the labor for a period of low production, and execute the fix with minimal disruption.

Key Failure Modes in Industrial Fans

To effectively apply PdM, you must know what you're looking for. Industrial fans, while seemingly simple, have several common failure modes that condition monitoring technologies are designed to detect.

  1. Bearing Failure: The number one cause of fan failure. This can be due to lubrication issues (too little, too much, wrong type, contamination), installation errors, or simple fatigue over time.
  2. Imbalance: Occurs when the center of mass of the rotating assembly is not aligned with the center of rotation. This is often caused by a buildup of dust or product on the fan blades, corrosion, or a thrown balancing weight.
  3. Misalignment: In direct-drive or belt-driven fans, this refers to the angular or parallel offset between the motor shaft and the fan shaft (or between the sheaves). It puts immense stress on bearings, couplings, and belts.
  4. Mechanical Looseness: Can be caused by loose mounting bolts holding the fan or motor to its base, cracks in the foundation, or worn components that create excessive clearance.
  5. Blade Damage: Physical damage to fan blades from impact, as well as erosion or corrosion from the process air stream, can lead to imbalance and reduced efficiency.
  6. Motor Electrical Faults: Issues within the motor itself, such as broken rotor bars or winding insulation breakdown, can cause the fan to perform poorly or fail entirely.
  7. Belt and Sheave Issues: For belt-driven fans, worn or improperly tensioned belts, and worn sheaves are a common source of failure and vibration.

Each of these failure modes generates a unique physical "symptom"—a change in vibration, temperature, sound, or electrical current. The technologies of PdM are the stethoscopes that allow us to detect these symptoms.


The Technology Stack: Key Condition Monitoring Techniques

A robust fan PdM program uses a multi-technology approach, as different techniques are sensitive to different failure modes. Think of it as a doctor using an EKG, an X-ray, and a blood test to get a complete picture of a patient's health.

Vibration Analysis: The Cornerstone of Fan PdM

If you could only choose one technology for fan predictive maintenance, it would be vibration analysis. It is the single most effective tool for diagnosing the health of rotating machinery. Every mechanical fault—imbalance, misalignment, bearing wear, looseness—creates a distinct vibration signature.

  • How it Works: Accelerometers (sensors) are mounted on the fan's bearing housings. They measure vibration in terms of acceleration or velocity and transmit this data to an analysis system.
  • What it Detects:
    • Imbalance: Shows up as a high vibration peak at exactly 1x the fan's running speed (RPM).
    • Misalignment: Typically appears as a high peak at 2x RPM, often with a significant 1x RPM peak as well.
    • Looseness: Often characterized by multiple harmonics (peaks at 1x, 2x, 3x, 4x RPM, etc.).
    • Bearing Faults: Generate very distinct, high-frequency signals corresponding to the physical dimensions of the bearing's components (ball pass frequency inner/outer race, etc.).
  • The Power of FFT: The raw vibration signal is a complex, messy waveform. The magic happens through a mathematical process called Fast Fourier Transform (FFT). FFT deconstructs the complex signal into its simple component frequencies, creating a spectrum plot (amplitude vs. frequency). This plot is what allows an analyst—or an AI algorithm—to pinpoint the exact source of the problem.
  • Industry Standards: To add objectivity, vibration severity is often judged against standards like ISO 10816, which provides general guidelines for acceptable vibration levels for different classes of machinery.

Thermal Imaging (Infrared Thermography)

Heat is often one of the earliest and most intuitive indicators of a problem. Infrared cameras capture thermal energy and display it as a visual image, allowing you to see temperature anomalies instantly.

  • How it Works: An infrared camera measures the emitted thermal radiation from a surface. It doesn't measure temperature directly but calculates it based on the radiation and the object's emissivity.
  • What it Detects in Fans:
    • Overheating Bearings: A bearing suffering from poor lubrication or excessive load will run hot. Thermal imaging can spot this long before it becomes an audible or severe vibrational issue.
    • Motor Hot Spots: Can indicate internal winding problems or poor airflow.
    • Poor Electrical Connections: A loose or corroded connection in the motor terminal box will create resistance and generate significant heat, posing a fire risk.
    • Belt/Sheave Issues: Slipping belts generate frictional heat that is easily visible with a thermal camera.

Pro-Tip: The key to effective thermography is not just looking for absolute high temperatures, but for temperature differences (Delta T) between similar components under similar loads. A bearing running 20°C hotter than an identical one next to it is a clear red flag.

Acoustic Analysis: Listening for Trouble

Long before a bearing fault generates enough vibration to be felt, it creates high-frequency stress waves and sounds that are inaudible to the human ear. Acoustic analysis uses ultrasonic sensors to detect these early warning signs.

  • How it Works: Highly sensitive microphones listen for high-frequency sounds (typically in the 20-100 kHz range). These sounds are then translated down into the audible range so a technician can hear them through headphones and see their intensity on a meter.
  • What it Detects:
    • Early-Stage Bearing Failure: The very first sign of a bearing problem is often a lack of lubrication, which creates friction and high-frequency noise. Acoustic analysis can detect this weeks or even months before vibration analysis.
    • Lubrication Needs: Technicians can use acoustic tools to lubricate bearings with precision. As grease is applied, the ultrasonic noise level drops. When it reaches a minimum, the bearing has the optimal amount of lubrication. This prevents under- and over-greasing, a major cause of bearing failure.
    • Air/Gas Leaks: In the ductwork associated with the fan system, ultrasonic sensors are exceptional at detecting the distinct sound of pressurized air escaping through a crack or bad seal.

Oil Analysis (for large, oil-lubricated fan systems)

For large, critical fans that use oil reservoirs or circulating lubrication systems (common in power generation or heavy industry), oil analysis is a vital PdM tool. It's like a blood test for your machine.

  • How it Works: A small sample of oil is taken from the machine and sent to a lab for analysis.
  • What it Reveals:
    • Wear Particle Analysis: Identifies the quantity, size, and type of metal particles in the oil. Finding high levels of bearing-specific metals (like chromium or manganese) gives a definitive diagnosis of bearing wear.
    • Contamination: Detects the presence of dirt, water, or other fluids that can destroy the oil's lubricating properties and damage components.
    • Oil Chemistry: Checks for chemical breakdown of the oil itself (e.g., oxidation, viscosity changes), indicating that the oil needs to be changed.

Motor Current Signature Analysis (MCSA)

The motor is the heart of the fan system. MCSA uses the motor itself as a sensor to detect mechanical and electrical problems not just in the motor, but in the fan it's driving.

  • How it Works: A current clamp is placed around one of the motor's power leads. It analyzes tiny fluctuations in the current being drawn by the motor.
  • What it Detects:
    • Mechanical Issues: Problems like fan imbalance or bearing faults cause slight changes in the load on the motor, which appear as specific patterns in the current signature.
    • Electrical Faults: MCSA is exceptionally good at detecting internal motor problems like broken rotor bars, stator winding faults, and air gap eccentricity, which are difficult to find with other technologies.

By combining these technologies, you create a dense web of data that leaves no place for a potential failure to hide.


Building Your Fan Predictive Maintenance Program: A Step-by-Step Guide

Implementing a PdM program can seem daunting, but a structured, phased approach makes it manageable and ensures success.

Step 1: Asset Criticality Analysis

You can't—and shouldn't—put advanced sensors on every fan in your facility. The first step is to determine which fans matter most. Perform an asset criticality analysis to rank your equipment.

Create a simple matrix:

  • Impact of Failure (Y-axis): What happens if this fan fails?
    • High: Major safety risk, complete production stoppage, significant environmental impact.
    • Medium: Partial production loss, requires operational workarounds.
    • Low: Minor inconvenience, redundant unit available.
  • Probability of Failure (X-axis): How likely is this fan to fail?
    • High: Old equipment, harsh operating environment, known history of problems.
    • Medium: Moderate age and operating conditions.
    • Low: New equipment, clean environment, non-continuous operation.

Your High-Impact, High-Probability fans are your top priority for a full-scale PdM deployment. Start there, prove the concept and ROI, and then expand the program to other critical assets.

Step 2: Selecting the Right IIoT Sensors and Technology

Based on your criticality analysis and the likely failure modes of your priority fans, select the appropriate technology. In 2025, wireless Industrial Internet of Things (IIoT) sensors are the standard for most applications.

  • Sensor Types: For a critical fan, a common setup includes a triaxial vibration sensor and a temperature sensor combined in a single, battery-powered wireless unit.
  • Wired vs. Wireless:
    • Wireless: Lower installation cost, easy to deploy on existing equipment, ideal for hard-to-reach locations. The dominant choice for scaling PdM.
    • Wired: Provides continuous, high-resolution data, necessary for extremely high-speed or complex machinery, but much more expensive to install.
  • Data Acquisition: Decide how often data will be collected. For most fans, a vibration reading every 1-4 hours is sufficient to catch developing faults. The system can be programmed to take more frequent readings if an anomaly is detected.

Step 3: Establishing a Baseline

Once sensors are installed, you need to establish a baseline of normal operating behavior. You cannot identify "abnormal" until you have rigorously defined "normal."

Collect data for a period of several weeks on each fan while it is known to be in a healthy state. This baseline data should capture the full range of normal operations—different speeds, loads, and environmental conditions. This historical data is the foundation upon which all future analysis is built.

Step 4: Setting Alarm Thresholds

With a baseline established, you can set alarm thresholds. These are the trigger points that will alert you to a developing problem.

  • Static Alarms: These are fixed values, often based on industry standards like ISO 10816. For example, "Alert if overall vibration exceeds 0.15 in/sec."
  • Statistical Alarms (AI-Powered): This is the more advanced and effective method. The system learns the unique signature of each machine and sets alarms based on percentage deviations from the learned baseline. For example, "Alert if the vibration at 2x RPM increases by 50% over its normal level." This method is far more sensitive and eliminates false alarms caused by machines that naturally vibrate more than others.

It's best practice to use a two-tiered system:

  • Alert (or "Advisory"): An early warning. The condition has changed, but it's not yet critical. This prompts an analyst to investigate the data more closely.
  • Alarm (or "Critical"): A serious condition. The asset is approaching failure, and maintenance action is required soon.

Step 5: Data Analysis and Interpretation

This is where data becomes intelligence. Raw sensor readings are fed into a central platform for analysis.

  • The Human Analyst: A trained vibration analyst can look at FFT spectra and time waveform data to diagnose faults with high precision. This requires specialized expertise.
  • The AI Co-Pilot: Modern platforms leverage AI-powered predictive maintenance to automate this process. Machine learning algorithms are trained on vast datasets of both healthy and failing equipment. They can automatically detect anomalies, identify specific failure patterns (like bearing faults vs. imbalance), and provide a clear diagnosis, often faster and more reliably than a human can.

Step 6: Integrating with a CMMS

Collecting predictive data is useless if it doesn't lead to action. The final, critical step is to close the loop by integrating your condition monitoring platform with your Computerized Maintenance Management System (CMMS).

A seamless integration between your PdM system and your CMMS software creates a powerful, automated workflow:

  1. A wireless sensor on a fan detects a Stage 2 bearing fault.
  2. The AI platform analyzes the data, confirms the fault, and raises a critical alarm.
  3. This alarm automatically triggers a high-priority work order in the CMMS.
  4. The work order is pre-populated with all the necessary information: the asset ID, the specific fault diagnosis (e.g., "Outer race fault on motor outboard bearing"), and the raw data for reference.
  5. The maintenance planner sees the work order, verifies the necessary parts are in stock, and schedules the repair.

This level of automation eliminates communication delays and ensures that predictive insights are converted into corrective action efficiently. Powerful CMMS integrations are the key to unlocking the full operational value of your PdM program.


Calculating the ROI of Fan Predictive Maintenance

Securing budget for a PdM program requires a clear business case. You must demonstrate a compelling Return on Investment (ROI). The calculation involves looking at both the cost of inaction and the return from your investment.

The "Cost of Inaction" Calculation

First, calculate the cost of a single, unplanned failure of a critical fan.

Downtime Cost = (Lost Production Revenue/Hour) + (Labor Costs) + (Repair Costs)

  • Example: A critical furnace combustion air fan fails.
    • Lost Revenue: The line produces $20,000/hour in product. The failure lasts 8 hours. Lost Revenue = $160,000.
    • Labor Costs: 2 technicians work 8 hours of overtime at $100/hour. Labor Cost = $1,600.
    • Repair Costs: A new motor must be rush-ordered ($7,000) and the damaged fan impeller and shaft need to be replaced ($5,000). Repair Cost = $12,000.
    • Total Cost of One Failure = $173,600.

The "Investment" Calculation

Next, calculate the cost of the PdM program for that asset.

  • Hardware: 1 wireless vibration/temp sensor = $500
  • Software: Annual software subscription per asset = $200
  • Installation/Training: (Assume negligible for a single wireless sensor)
  • Total First-Year Investment = $700

The "Return" Calculation

In this scenario, the PdM system would have detected the impending motor failure weeks in advance. The repair could have been planned during a scheduled shutdown. The cost would have been a standard motor replacement ($3,500) and standard labor costs ($800), with zero lost production.

  • Cost Avoidance = $173,600 (Cost of Failure) - $4,300 (Cost of Planned Repair) = $169,300

ROI (%) = [(Financial Gain - Cost of Investment) / Cost of Investment] * 100

ROI (%) = [($169,300 - $700) / $700] * 100 = 24,085%

While this is a dramatic example, it illustrates the immense financial leverage of PdM. By preventing just one major failure, the system pays for itself many, many times over.


Real-World Scenarios & Troubleshooting Guide

Let's apply these concepts to common fan problems.

Scenario 1: Detecting Fan Imbalance

  • Symptoms: The fan assembly is visibly shaking. The structure it's mounted on is vibrating. You hear a low, steady "hum" or "rumble" that gets worse as the fan speeds up.
  • PdM Tools: Vibration analysis is the definitive tool. You will see a single, dominant peak in the vibration spectrum at 1x the fan's running speed.
  • Root Causes:
    • Buildup of material (dust, grease, product) on the fan blades.
    • A balancing weight has fallen off.
    • Uneven corrosion or erosion of the blades.
  • Solution: The PdM data confirms it's an imbalance issue, not a bearing or alignment problem. The work order instructs technicians to first thoroughly clean the fan blades. If the vibration persists after cleaning, perform a precision balance on the fan rotor.

Scenario 2: Early Detection of Bearing Failure

  • Symptoms: Initially, there may be no visible or audible symptoms. As it progresses, you might hear a high-pitched "whining" or "grinding" sound. A thermal scan shows the bearing housing is 30°F hotter than the motor housing.
  • PdM Tools: Acoustic analysis might detect the issue first as a lack of lubrication. Vibration analysis will confirm it by showing distinct, non-harmonic, high-frequency peaks known as "bearing fault frequencies." Thermal imaging will show the heat generated by friction.
  • Root Causes: Contaminated lubricant, improper lubrication (too much/too little), fatigue from normal wear, or stress from misalignment.
  • Solution: The PdM data provides a confident diagnosis weeks before failure. This allows you to order the correct replacement bearing and schedule the repair during the next planned outage, preventing a catastrophic seizure. This is a perfect use case for a targeted solution like predictive maintenance for bearings.

Scenario 3: Identifying Structural Looseness

  • Symptoms: A "clunking" or "rattling" noise. Vibration that seems erratic and harsh.
  • PdM Tools: Vibration analysis is key. Looseness typically shows up as a series of peaks at integer multiples of the running speed (1x, 2x, 3x, 4x, etc.). This pattern is distinct from imbalance (1x) or misalignment (2x).
  • Root Causes: The bolts holding the fan or motor to the concrete base have worked themselves loose. A crack has developed in the support structure or foundation.
  • Solution: The vibration data points away from the rotor and towards the structure. The work order directs the technician to perform a full inspection of all mounting bolts, the baseplate, and the surrounding concrete and steel for cracks, and to torque all fasteners to specification.

The Future is Prescriptive: Beyond Predictive Maintenance

For years, predictive maintenance was the gold standard. But technology continues to advance. The next frontier is prescriptive maintenance.

  • Predictive: Tells you WHEN a fan will fail.
  • Prescriptive: Tells you WHY it's failing and recommends the OPTIMAL way to fix it.

A prescriptive maintenance engine does more than just analyze sensor data. It fuses that real-time data with a wealth of other information from your CMMS: maintenance history, past failure modes, parts inventory, and technician skill sets. It might analyze operational data (fan speed, damper positions) and even external data (ambient temperature, humidity).

Instead of just an alert that says "Bearing Fault Detected," a prescriptive recommendation might say: "High probability of outer race failure on Fan-101B motor outboard bearing within 180 hours. This failure signature matches the one from 14 months ago, which was caused by lubricant contamination. Recommendation: Schedule a bearing replacement within the next 7 days. Required part is SKF 6208-2Z. Estimated repair time is 3 hours. Also, take an oil sample from the motor before disassembly to confirm contamination."

This is the future: AI-driven recommendations that are not just predictive, but directive, guiding your team to the most efficient and effective maintenance action every single time.

Conclusion: Take Control of Your Fan Reliability

Industrial fans are the unsung heroes of countless facilities, and their reliability is paramount. Moving away from outdated reactive and preventive maintenance strategies is no longer a choice—it's a competitive necessity.

Fan predictive maintenance, powered by modern IIoT sensors and AI-driven analytics, provides an unprecedented level of insight and control. It allows you to:

  • Eliminate unplanned downtime from fan failures.
  • Reduce maintenance costs by fixing only what needs to be fixed, when it needs to be fixed.
  • Extend the life of your critical assets.
  • Improve safety for your personnel.
  • Transform your maintenance department from a reactive cost center to a proactive, strategic driver of business value.

The technology is here. The business case is clear. The time to act is now.

Ready to move from reactive firefighting to proactive control? Explore how our AI-powered predictive maintenance platform can transform your fan reliability program and deliver a tangible return on investment.

Tim Cheung

Tim Cheung

Tim Cheung is the CTO and Co-Founder of Factory AI, a startup dedicated to helping manufacturers leverage the power of predictive maintenance. With a passion for customer success and a deep understanding of the industrial sector, Tim is focused on delivering transparent and high-integrity solutions that drive real business outcomes. He is a strong advocate for continuous improvement and believes in the power of data-driven decision-making to optimize operations and prevent costly downtime.
