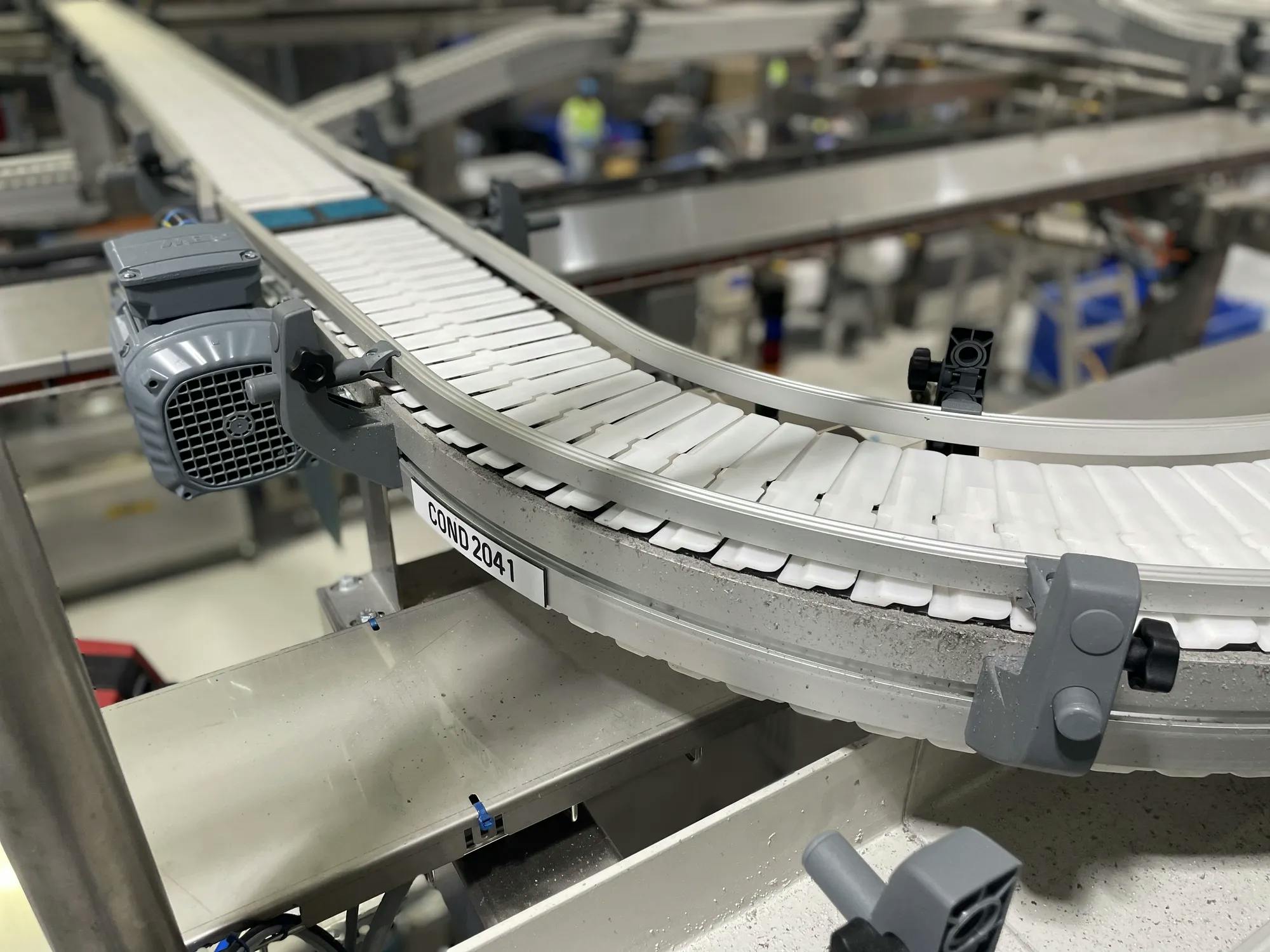

Beyond Break-Fix: The 2025 Framework for How to Stop Conveyor Belt Motor Failure

The sudden, jarring silence of a stopped conveyor line is a sound every Maintenance Manager and Plant Operator dreads. It’s the sound of production targets vanishing, shipping deadlines being missed, and maintenance budgets being consumed by emergency overtime and expedited parts. A failed conveyor motor isn't just a mechanical breakdown; it's a critical failure that ripples through your entire operation.

For years, the approach has been largely reactive. A motor fails, the team scrambles to replace it, and everyone hopes it doesn't happen again. But hope is not a strategy. In 2025, leading facilities are moving beyond this costly "break-fix" cycle. They understand that to truly stop conveyor belt motor failure, you need to shift from a maintenance mindset to a reliability framework.

This isn't just another list of maintenance tips. This is a comprehensive, strategic guide for building a robust program that makes motor failures a rare, predictable, and manageable event. We will deconstruct the problem and provide an actionable, four-pillar framework to build a culture of reliability that protects your most critical assets.

The Foundation: Shifting from Maintenance to Reliability

Before we dive into the "how," we must address a fundamental "what." What is the difference between maintenance and reliability?

• Maintenance is the act of preserving an asset or restoring it to a state in which it can perform its required function. It's about fixing things.
• Reliability is the probability that an asset will perform its required function for a specified period under stated conditions. It's about preventing things from breaking in the first place.

A world-class maintenance team is excellent at reacting to failures quickly. A world-class reliability program ensures they rarely have to. This shift in perspective is visualized perfectly by the P-F Curve.

(Image description: A P-F Curve graph showing Potential Failure (P) detected early by predictive technologies, and Functional Failure (F) where the equipment stops working. The y-axis is 'Condition' and the x-axis is 'Time'.)

The P-F Curve illustrates that from the point a potential failure (P) is first detectable, there is a period of time before it degrades to a functional failure (F). Reactive maintenance operates at point F. Proactive and predictive maintenance strategies aim to detect issues in the P-F interval, giving you time to plan, schedule, and execute a repair with minimal disruption. Our goal is to live in the P-F interval.

Pillar 1: Precision Installation & Commissioning - Setting Motors Up for Success

A staggering number of motor failures can be traced back to day one. You can have the most advanced predictive technology in the world, but if the motor was installed improperly, you are only predicting a failure that was built-in from the start. Reliability begins here.

The Importance of a Solid Foundation

The motor's base is its bedrock. Any instability here will translate into destructive vibration.

• Base Flatness: The mounting base must be perfectly flat. Use a precision straightedge and feeler gauges to check for gaps. Industry best practice, as outlined by the Electrical Apparatus Service Association (EASA), suggests a flatness tolerance of 0.002 inches (0.05 mm).
• Eliminating "Soft Foot": Soft foot occurs when one or more of the motor's feet do not sit flat on the base. When you tighten the mounting bolts, you distort the motor's frame, causing internal misalignment of the bearings. This is a primary cause of premature bearing failure and high vibration. Always check for and correct soft foot using shims before performing final alignment.
• Grouting: For larger motors, ensure the baseplate is properly grouted to the concrete foundation to create a rigid, vibration-dampening mass.

Precision Alignment: The Non-Negotiable Task

Misalignment is a motor killer. When the motor shaft and the driven component (like a gearbox or head pulley) are not precisely aligned, immense stress is placed on the bearings, seals, and couplings. This leads to:

• Catastrophic bearing failure
• Increased vibration and noise
• Higher energy consumption (up to 15% more)
• Coupling failure
• Seal failure, leading to lubricant contamination

Actionable Steps:

1. Invest in Laser Alignment: Ditch the straightedges and dial indicators. Modern laser alignment systems are fast, incredibly accurate, and can measure and correct for angular and parallel misalignment simultaneously.
2. Adhere to Tolerances: Don't just "eyeball it." Follow established alignment tolerance standards based on the motor's RPM. For a common 1800 RPM motor, an acceptable parallel offset might be less than 0.003 inches.
3. Account for Thermal Growth: Motors heat up during operation, causing them to expand. For critical applications, you must account for this "thermal growth" during alignment. Your laser alignment tool or motor manufacturer can provide the necessary offset values.

Proper Belt Tensioning

Just like alignment, incorrect V-belt or synchronous belt tension is a direct path to failure.

• Too Loose: Belts will slip, causing glazing, heat, and inefficient power transmission.
• Too Tight: Excessive tension places a massive radial load on the motor and gearbox bearings, drastically reducing their lifespan. This is one of the most common—and easily avoidable—causes of bearing failure.

Actionable Steps: Use a sonic tension meter. These devices measure the frequency of a plucked belt to calculate its tension with scientific accuracy, removing the guesswork of "feel" or crude deflection measurements.

Electrical Commissioning Best Practices

The mechanical side is only half the battle.

• Verify Power Quality: Before energizing, check that the supplied voltage is within the motor's nameplate tolerance (typically ±10%). Crucially, check for phase voltage unbalance. An unbalance of just 2% can cause a temperature rise of nearly 20% in the windings, severely shortening the motor's life.
• Correct VFD Parameters: If using a Variable Frequency Drive (VFD), proper setup is critical. Set acceleration/deceleration ramps appropriately for the load to avoid excessive stress. Configure current limits to protect the motor from overloads. For long cable runs between the VFD and motor, consider installing line reactors or filters to mitigate voltage spikes that can destroy winding insulation.

Pillar 2: Proactive Maintenance - The Core of Prevention

With a perfectly installed motor, the next step is to maintain that state of health through disciplined, value-added proactive tasks. This means evolving your Preventive Maintenance (PM) program from a generic checklist into a targeted defense against known failure modes.

Building a World-Class Preventive Maintenance (PM) Program

A truly effective PM program is specific, data-informed, and standardized. Generic tasks like "Check motor" are useless. Instead, your PMs, tracked and managed within a modern CMMS for PM procedures, should be detailed and purposeful.

Lubrication: The Lifeblood of Bearings

Improper lubrication is responsible for 40-50% of all bearing failures. Getting it right is the single most impactful PM you can perform.

• The Right Grease: Not all greases are compatible. Mixing an EP-lithium complex grease with a polyurea-based grease can cause the oil to separate from the thickener, leaving the bearing unprotected. Standardize grease types for specific applications and use labeled, dedicated grease guns to prevent cross-contamination.
• The Right Amount: More is not better. Over-greasing blows out the bearing seals, allowing contaminants in. It can also cause the rolling elements to churn the grease, leading to overheating (thermal runaway). Use a calculated formula based on bearing size and speed, or better yet, use ultrasonic/acoustic lubrication tools that listen to the bearing and tell the technician exactly when enough new grease has been added.
• The Right Frequency: Time-based lubrication intervals are a good start, but condition-based is better. A motor in a hot, dusty environment needs more frequent attention than one in a clean, climate-controlled room.
• Contamination Control: Keep grease containers sealed. Wipe down grease fittings before and after application. Store grease guns in clean, dry locations.

Cleaning: A Cool Motor is a Happy Motor

A motor's cooling fins are designed to dissipate heat. A layer of dust and grime acts as an insulator, trapping heat and cooking the winding insulation. Every 10°C increase in winding temperature above its design limit can cut the insulation's life in half.

Best Practice: Regularly clean motor housings with compressed air (at low pressure, <30 psi) or by wiping them down. Avoid high-pressure water spray, which can force water past seals and into the motor.

Common Causes of Electric Motor Failure (and How to Mitigate Them)

Your PM program should be a direct countermeasure to the most common failure modes.

Bearing Failure (>50% of all failures)

• Causes: Contamination (dirt, water), improper lubrication (too much, too little, wrong type), misalignment, excessive belt tension, electrical fluting from VFDs.
• Mitigation:
  • Lubrication: Implement the precision lubrication practices described above.
  • Sealing: Use high-quality bearing seals (e.g., labyrinth seals in highly contaminated areas).
  • VFD Protection: For VFD-driven motors, install shaft grounding rings (e.g., AEGIS rings) to divert damaging shaft currents away from the bearings, preventing electrical discharge machining (EDM) or "fluting." Investing in a solution for predictive maintenance for bearings can provide early warnings of these issues.

Winding Insulation Failure (~30% of failures)

• Causes: Overheating, contamination (oil, moisture, conductive dust), voltage surges, vibration that chafes insulation.
• Mitigation:
  • Keep it Cool & Clean: Regular cleaning is paramount.
  • Test Insulation: Periodically perform an Insulation Resistance (IR) test, also known as a Megger test. This test applies a DC voltage to the windings to measure the resistance of the insulation. By trending these readings over time, you can see the insulation's health degrade long before it fails. A Polarization Index (PI) test is an even more robust method.
  • Power Quality: Use line reactors or dV/dt filters with VFDs to protect windings from voltage spikes.

Rotor Failure (~10% of failures)

• Causes: Most commonly, broken rotor bars due to the stress of frequent start/stop cycles or high-inertia loads.
• Mitigation:
  • Soft Starting: Use soft starters or VFDs to gently ramp up the motor's speed, reducing the mechanical and electrical stress during startup.
  • Application Review: Ensure the motor is correctly sized for the application's inertia and duty cycle. A standard motor may not be suitable for a high-cycle application.

Pillar 3: Predictive Maintenance (PdM) - Listening to Your Assets

While proactive PMs are essential, they are largely time-based. Predictive Maintenance (PdM) is condition-based. It uses technology to monitor the actual health of the motor in real-time, allowing you to detect the earliest signs of failure on the P-F curve. This is where you gain a massive strategic advantage.

Vibration Analysis: The Gold Standard for Mechanical Health

Vibration analysis is like a stethoscope for your machinery. A trained analyst can interpret a motor's vibration signature to pinpoint developing faults with incredible precision.

• What it Detects: Imbalance (like an unbalanced car tire), misalignment, bearing faults (distinguishing between inner race, outer race, and ball defects), mechanical looseness, and gear defects.
• How it Works: A sensor (accelerometer) is placed on the motor housing. It measures vibration in terms of velocity (in/sec) or acceleration (g's). The data is fed into a spectrum analyzer, which uses a Fast Fourier Transform (FFT) to break down the complex vibration signal into its individual frequencies. Each fault type has a unique frequency signature.
• Getting Started:
  1. Establish Baselines: Collect vibration data on healthy motors to know what "good" looks like.
  2. Set Alarms: Use industry standards like ISO 10816 as a starting point for overall vibration alarm levels.
  3. Trend Data: The real power is in trending. A sudden jump or a steady increase in a specific frequency is a clear sign that a fault is developing.

Infrared Thermography: Seeing Heat Before It Becomes a Problem

Thermal imaging cameras translate heat into a visible picture. This non-contact tool is incredibly effective for quickly scanning multiple motors and connections to find anomalies.

• What it Detects: Overheating bearings, poor electrical connections at the motor junction box, blocked cooling passages, and internal winding shorts.
• How to Use It:
  • Comparative Analysis: Compare the temperature of a motor to an identical one under similar load. A significant difference warrants investigation.
  • Trend Analysis: Store thermal images in your CMMS software and compare them over time. A bearing that was 120°F last month and is 160°F this month is on a path to failure.
  • Electrical Scans: Scan the motor's junction box and the starter in the Motor Control Center (MCC). A hot connection is a fire hazard and a point of failure.

Motor Circuit Analysis (MCA) & Electrical Signature Analysis (ESA)

These are more advanced electrical testing methods that provide deep insight into the health of the entire motor system.

• Motor Circuit Analysis (MCA): This is a de-energized test performed at the motor itself or the MCC. It can detect very early-stage winding insulation breakdown, turn-to-turn shorts, loose connections, and rotor issues. It's an excellent commissioning and troubleshooting tool.
• Electrical Signature Analysis (ESA): This is an energized test that analyzes the motor's current and voltage signatures while it's running. It can detect the same issues as MCA plus power quality problems and even mechanical issues like bearing faults and eccentricity, as these create slight load variations that show up in the electrical signal.

The Role of AI and IIoT in Modern PdM (The 2025 Advantage)

The biggest evolution in PdM is the move from periodic, route-based data collection to continuous, autonomous monitoring.

• IIoT Sensors: Small, wireless, battery-powered sensors that measure vibration and temperature can be permanently mounted to your conveyor motors. They stream data 24/7 to a central platform.
• AI-Powered Analytics: This is the game-changer. Instead of an analyst manually reviewing thousands of data points, an AI engine does the heavy lifting. It learns the unique operational signature of each motor and uses advanced algorithms to detect the slightest deviation from normal. This is the core of our AI Predictive Maintenance feature.
• Prescriptive Insights: The most advanced systems don't just tell you a failure is coming; they tell you what the failure is (e.g., "Outer race bearing fault detected"), how much time you have, and even recommend the corrective action. This is the future, and it's here now with platforms like our Predict product.

Pillar 4: Root Cause Analysis (RCA) - Learning from Every Failure

Even with a world-class program, a failure might occasionally occur. When it does, your job isn't over when the new motor is running. The most critical step is to understand why the old one failed. Without this, you are doomed to repeat the failure.

"Motor Failed - Replaced Motor" is Not an Option

Closing a work order with this comment is a sign of a purely reactive culture. It treats the symptom (the failed motor) without ever addressing the disease (the underlying cause). A reliability-focused organization mandates a Root Cause Analysis (RCA) for all critical asset failures.

A Simple RCA Framework: The 5 Whys

You don't need a complex, six-sigma level investigation for every failure. The "5 Whys" is a simple but powerful tool that any maintenance team can use. You simply ask "Why?" repeatedly until you uncover the latent, systemic root cause.

Real-World Example: A Conveyor Motor Fails Due to a Seized Bearing

1. Why did the motor fail? The drive-end bearing seized. (This is the direct cause).
2. Why did the bearing seize? It was contaminated with fine rock dust.
3. Why was it contaminated with dust? The bearing seal failed and allowed the dust to enter.
4. Why did the seal fail? It was a standard contact seal, which is not effective in highly abrasive, dusty environments. (This is a key finding).
5. Why was the wrong type of seal used on the motor? It's the standard motor our supplier provides for this model, and the application was never reviewed by engineering or reliability to see if it needed to be upgraded for the harsh conditions. (This is the root cause).

The solution is not just to replace the motor. The true corrective actions are:

• Specify a motor with an upgraded labyrinth or taconite seal for that specific conveyor position.
• Update the asset records and Bill of Materials (BOM) in the CMMS.
• Inspect other motors in similarly dusty areas to see if they are also at risk.

Leveraging Your CMMS for RCA

Your CMMS is a goldmine of data for RCA. By consistently using failure codes and documenting findings, you can run reports to identify trends. Are you seeing a rash of bearing failures on VFD-driven motors? It might be time to invest in shaft grounding rings. Are motors in the washdown area failing more often? You may need to upgrade to IP66-rated motors. This data-driven approach moves you from anecdotal evidence to factual decision-making.

Tying It All Together: Building Your Conveyor Motor Reliability Program

Implementing this framework can seem daunting, but it's a journey, not a destination. Here is a practical roadmap to get started.

Step 1: Assess Your Current State

You can't improve what you don't measure. Use your maintenance records to calculate the Mean Time Between Failure (MTBF) for your most critical conveyor motors. Identify your "bad actors"—the ones that fail most frequently. This is where you'll focus your initial efforts.

Step 2: Start with the Basics (Pillar 1 & 2)

The biggest and fastest returns come from mastering the fundamentals.

• Institute a mandatory precision alignment and soft foot check for every new motor installation.
• Overhaul your lubrication program. Standardize lubricants, train technicians on proper techniques, and get the right tools.
• Enhance your PM procedures with specific, value-added tasks like IR scans of connections and regular motor cleaning.

Step 3: Pilot a PdM Program (Pillar 3)

You don't need to buy a massive system overnight.

• Pick 5-10 of your most critical or problematic conveyors.
• Start with route-based data collection using handheld vibration and thermal imaging tools.
• Use the data to catch a few developing failures before they happen. Document the "saves"—the cost of the planned repair vs. the cost of the unplanned downtime you avoided. Use this ROI to build a business case for expanding the program, perhaps with a dedicated predictive maintenance for conveyors solution.

Step 4: Instill a Culture of Reliability (Pillar 4)

This is the most important and challenging step.

• Train your entire team—technicians, planners, supervisors—on the principles of reliability and the importance of RCA.
• Change your KPIs. Celebrate proactive "catches" and increasing MTBF, not just low mean-time-to-repair (MTTR). As a resource, Reliabilityweb offers great insights on building this kind of culture.
• Empower your technicians. Give them the tools, training, and time to do the job right the first time.

Conclusion: A Future Without Unplanned Failure

Stopping conveyor belt motor failure is not about a single magic bullet. It's about a holistic, disciplined commitment to excellence across the entire asset lifecycle. By building your strategy on the four pillars—Precision Installation, Proactive Maintenance, Predictive Maintenance, and Root Cause Analysis—you fundamentally change your relationship with your equipment.

You move from being a victim of failure to being the architect of reliability. The jarring silence of a failed line is replaced by the steady hum of predictable, profitable production. The journey starts today.
